DK30
Plastic mudguard white border and integrated adjustable brackets
NEW PRODUCT

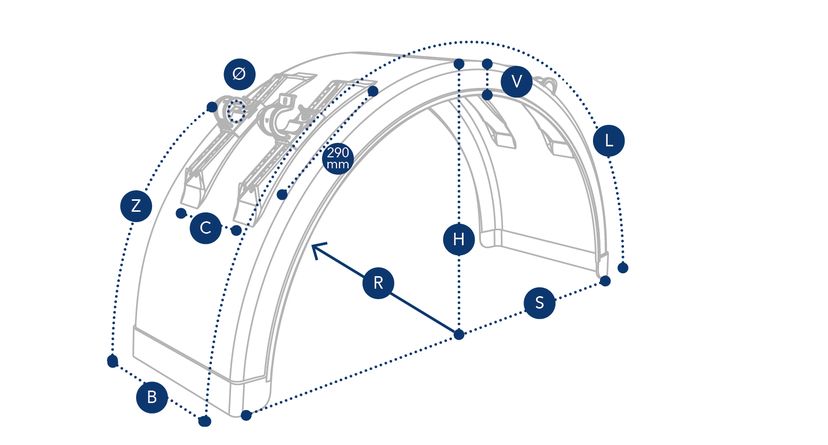

| Cod | B | L | R | S | H | V | C | Z | Ø |
|---|---|---|---|---|---|---|---|---|---|
| DK3070 | 650 | 1900 | 630 | 1250 | 600 | 75 | 450 | 525 | 42 |
| DK3071 | 650 | 2000 | 630 | 1260 | 640 | 75 | 450 | 580 | 42 |
| DK3072 | 650 | 1900 | 630 | 1250 | 600 | 75 | 450 | 525 | 48 |
| DK3073 | 650 | 2000 | 630 | 1260 | 640 | 75 | 450 | 580 | 48 |
| DK3075 | 430 | 1900 | 640 | 1250 | 590 | 75 | 200 | 525 | 42 |
| DK3076 | 430 | 2000 | 640 | 1270 | 640 | 75 | 200 | 580 | 42 |
| DK3077 | 430 | 1900 | 640 | 1250 | 590 | 75 | 200 | 525 | 48 |
| DK3078 | 430 | 2000 | 640 | 1270 | 640 | 75 | 200 | 580 | 48 |
DIMENSIONS IN mm
TECHNICAL SPECIFICATIONS
Produced in high quality polypropylene completely recyclable
Wearproof
High value between resistance and weight
Easy to fit up
Available in different dimensions
Possibility to customise it as per customer’s needs
Innovative adjustable system supports
- Single tire
- Double tire
DK3075
10.5 R 20
11 R 24,5
11.00 R 22
11.00 R 24
12 R 19,5
12.00 R 20
12.5 R 20
12/80 R 20
12/80 R 22,5
13 R 20
13/80 R 20
14.00 R 20
14.50 R 20
14.75/80 R 20
15 R 19,5
15.5/80 R 20
16.5 R 19,5
275/80 R 22,5
295/70 R 22,5
295/75 R 22,5
295/80 R 22,5
305/60 R 22,5
305/70 R 19,5
305/70 R 22,5
315/60 R 22,5
315/70 R 19,5
315/75 R 22,5
315/80 R 22,5
345/75 R 22,5
350/75 R 22,5
355/50 R 22,5
365/70 R 22,5
365/80 R 20
365/80 R 22,5
385/55 R 19,5
385/55 R 22,5
385/65 R 19,5
385/65 R 22,5
405/70 R 20
405/70 R 20
415/45 R 22,5
435/45 R 22,5
445/40 R 22,5
445/45 R 22,5
455/40 R 22,5
455/55 R 22,5
E-G20 PILOTE
E22,5 PILOTE
DK3076
10.5 R 20
11 R 24,5
11.00 R 22
11.00 R 24
12 R 19,5
12.00 R 20
12.5 R 20
12/70 R 22,5
12/80 R 20
12/80 R 22,5
13 R 20
13 R 22,5
13/80 R 20
14.00 R 20
14.5 R 24
14.50 R 20
14.75/80 R 20
15 R 19,5
15.5/80 R 20
16.5 R 19,5
275/80 R 22,5
295/70 R 22,5
295/75 R 22,5
295/80 R 22,5
295/80 R 24,5
305/60 R 22,5
305/70 R 19,5
305/70 R 22,5
305/75 R 24,5
315/60 R 22,5
315/70 R 19,5
315/70 R 22,5
315/75 R 22,5
315/75 R 24,5
315/80 R 22,5
325/85 R 16
345/75 R 22,5
350/75 R 22,5
355/45 R 17,5
355/50 R 22,5
365/70 R 22,5
365/80 R 20
365/80 R 22,5
375/75 R 20
385/55 R 19,5
385/65 R 19,5
385/65 R 22,5
405/70 R 20
405/70 R 20
415/45 R 22,5
435/45 R 22,5
445/40 R 22,5
455/40 R 22,5
455/45 R 22,5
455/55 R 22,5
E-G20 PILOTE
E22,5 PILOTE
DK3077
10.5 R 20
11 R 24,5
11.00 R 22
11.00 R 24
12 R 19,5
12.00 R 20
12.5 R 20
12/80 R 20
12/80 R 22,5
13 R 20
13/80 R 20
14.00 R 20
14.75/80 R 20
15 R 19,5
15.5/80 R 20
16.5 R 19,5
275/80 R 22,5
295/70 R 22,5
295/75 R 22,5
295/80 R 22,5
305/60 R 22,5
305/70 R 19,5
305/70 R 22,5
315/60 R 22,5
315/70 R 19,5
315/70 R 22,5
315/75 R 22,5
315/80 R 22,5
345/75 R 22,5
355/50 R 22,5
365/70 R 22,5
365/80 R 20
365/80 R 22,5
385/55 R 22,5
385/65 R 19,5
385/65 R 22,5
405/70 R 20
405/70 R 20
415/45 R 22,5
435/45 R 22,5
445/40 R 22,5
445/45 R 22,5
455/40 R 22,5
455/55 R 22,5
E-G20 PILOTE
E22,5 PILOTE
DK3078
10.5 R 20
11 R 24,5
11.00 R 22
11.00 R 24
12 R 19,5
12.00 R 20
12.5 R 20
12/70 R 22,5
12/80 R 20
12/80 R 22,5
13 R 20
13 R 22,5
13/80 R 20
14.00 R 20
14.5 R 24
14.50 R 20
14.75/80 R 20
15 R 19,5
15.5/80 R 20
16.5 R 19,5
275/80 R 22,5
295/70 R 22,5
295/75 R 22,5
295/80 R 22,5
295/80 R 24,5
305/60 R 22,5
305/70 R 19,5
305/70 R 22,5
305/75 R 24,5
315/60 R 22,5
315/70 R 19,5
315/70 R 22,5
315/75 R 22,5
315/75 R 24,5
315/80 R 22,5
325/85 R 16
345/75 R 22,5
350/75 R 22,5
355/45 R 17,5
355/50 R 22,5
365/70 R 22,5
365/80 R 20
365/80 R 22,5
375/75 R 20
385/55 R 19,5
385/65 R 19,5
385/65 R 22,5
405/70 R 20
405/70 R 20
415/45 R 22,5
435/45 R 22,5
445/40 R 22,5
455/40 R 22,5
455/45 R 22,5
455/55 R 22,5
E-G20 PILOTE
E22,5 PILOTE
DK3070
11 R 22,5
11.00 R 20
11.00 R 22
12 R 19,5
12 R 22,5
12/80 R 20
13 R 22,5
275/70 R 22,5
275/80 R 22,5
285/75 R 24,5
295/60 R 22,5
295/70 R 22,5
295/75 R 22,5
295/80 R 22,5
305/60 R 22,5
305/70 R 19,5
305/75 R 24
315/60 R 22,5
315/70 R 19,5
315/75 R 22,5
315/80 R 22,5
DK3071
11 R 24,5
11.00 R 20
11.00 R 24
12 R 22,5
12.00 R 20
12.00 R 24
12/70 R 22,5
13 R 22,5
275/80 R 22,5
285/75 R 24,5
295/70 R 22,5
295/75 R 22,5
295/80 R 22,5
305/75 R 24
305/75 R 24,5
315/75 R 22,5
315/75 R 24,5
315/80 R 22,5
DK3072
11 R 22,5
11.00 R 20
11.00 R 22
12 R 19,5
12 R 22,5
12/80 R 20
13 R 22,5
275/70 R 22,5
275/80 R 22,5
285/75 R 24,5
295/60 R 22,5
295/70 R 22,5
295/75 R 22,5
295/80 R 22,5
305/60 R 22,5
305/70 R 19,5
305/75 R 24
315/60 R 22,5
315/70 R 19,5
315/75 R 22,5
315/80 R 22,5
DK3073
11 R 24,5
11.00 R 20
11.00 R 24
12 R 22,5
12.00 R 20
12.00 R 24
12/70 R 22,5
12/80 R 20
13 R 22,5
275/80 R 22,5
285/75 R 24,5
295/70 R 22,5
295/75 R 22,5
295/80 R 24,5
305/75 R 24
305/75 R 24,5
315/75 R 22,5
315/75 R 24,5
315/80 R 22,5
Series
Light
Product features:
White border
Adjustable supports
REQUEST A QUOTE:
DK30
Plastic mudguard white border and integrated adjustable brackets
